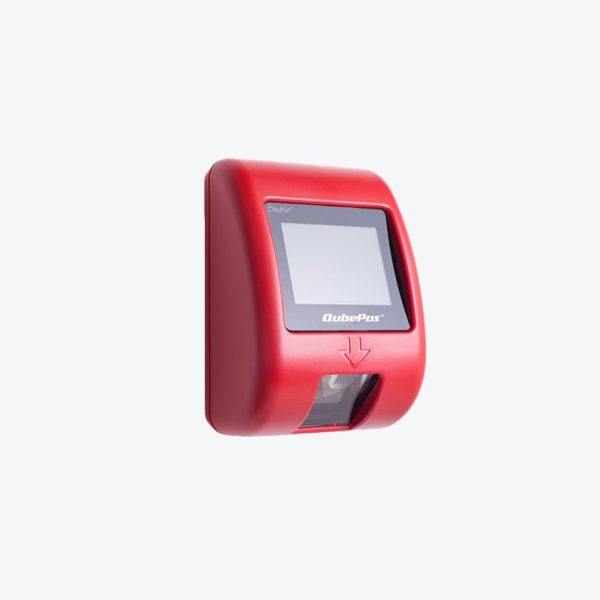

QubePos Shuttle SG-15 Price Verifier

The QubePos Shuttle SG-15 is an entry-level, small and attractive price verifier that features the latest technology and interfacing through Wireless RF or hard-wired Ethernet.

  • Compact Price Checker – for in-store customer use
  • Single line CCD (270 scans/second) barcode scanner
  • Optional 20 line (1350 scans/second) laser barcode scanner
  • Optional 2D scan engine
  • Up to 200mm scanning range

The bright display has, depending on the font set, 3 or 5 lines and can display up to 20 characters per line. There is a choice of bar code scanners between the entry level single scan line CCD scanner and the high-performance 20 scan lines omnidirectional laser scanner (a 2D scan engine is also available on request).

Its compact size and sympathetic good looks mean that the Shuttle can be installed anywhere in a store, including on the shelves. This flexibility of installation is enhanced by the optional Power-over-Ethernet.

  • Wireless: WiFi 802.11 b/g/n with WPA encryption (WPA – 1, WPA – 2 personal Enterprise) through mini
  • Ethernet: 10/100 Base – T
  • Audio: Play real audio samples (wav) through a loudspeaker
  • Animation: Supports animations/pictures/logos on display
  • Handheld scanner connection through AUX port (RS – 232)
  • AUX Port: (RS232C) for connection of handheld barcode scanner
  • Display: High-bright blue – white LCD, 128 x 64 pixels
  • Lightsource: 650nm visible red LED
