Magnetic Stripe Reader

Specification
  • Single, Dual and Triple Track Model
  • Comply with ISO/IEC 7812 Identification Cards
  • Support Multiple Country Code Settings
  • Swipe Cycles: Approximately 500,000
  • Manual Swipe Operation: Bi-direction
  • Support Programmable MSR Setting for the Header, Tailor, Separator, Prefix and Suffix
  • Track Sequence (using Matrix Maker)

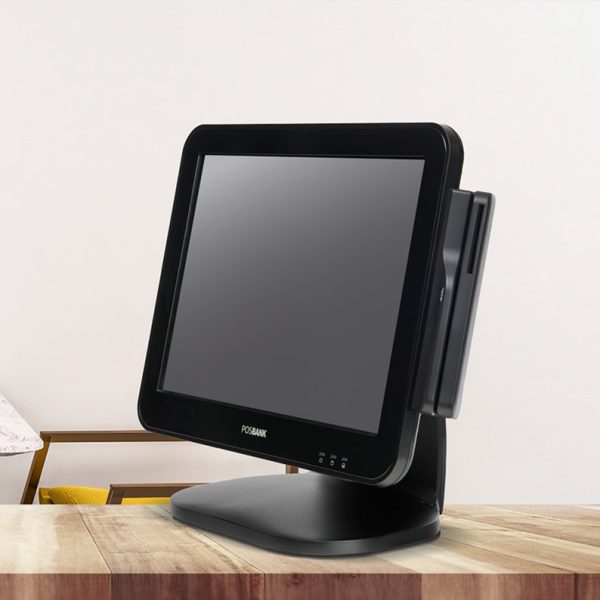

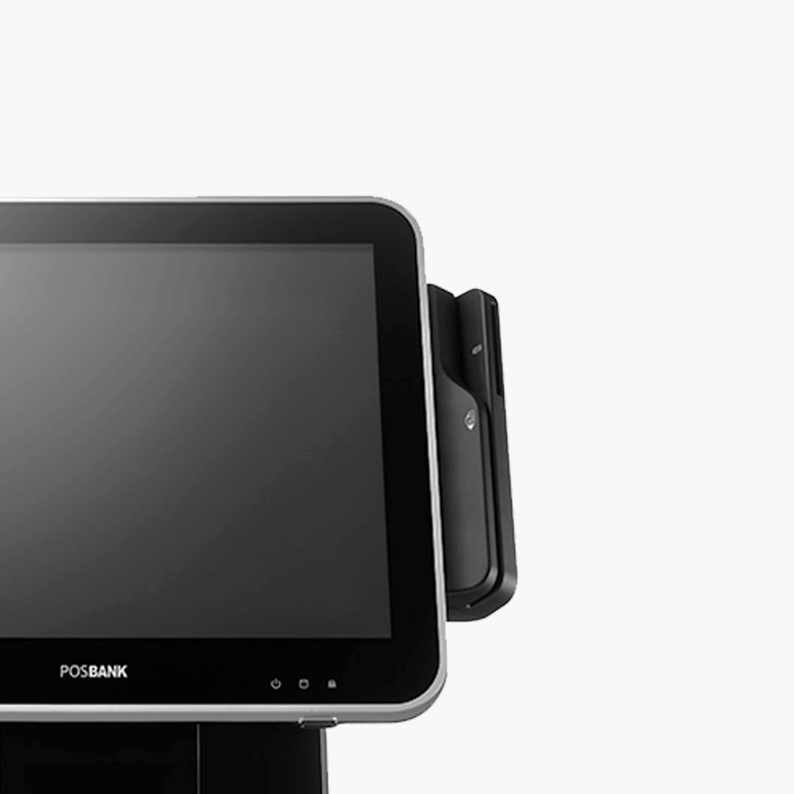

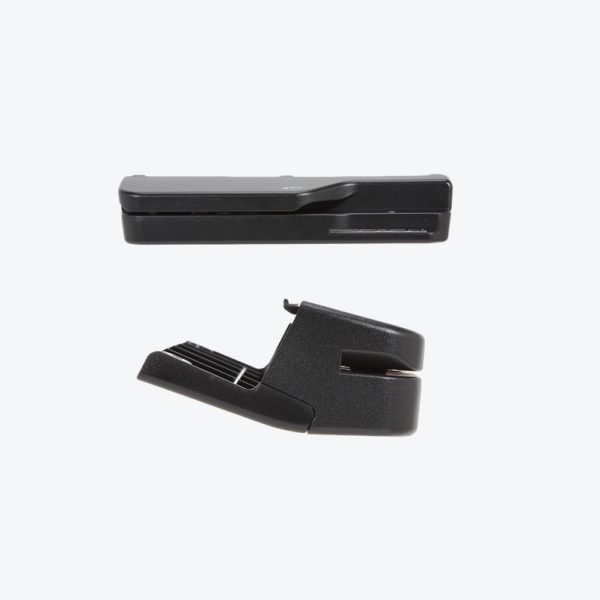

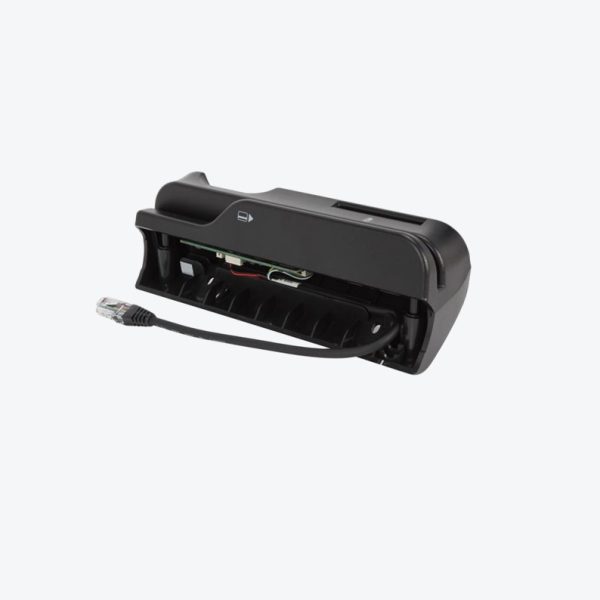

The POSBANK Magnetic Stripe Reader is an integrated programmable magnetic card reader for APEXA G terminals. It is highly reliable- being able to read both standard and high coercivity cards (300-4000 Oe) which enables you to use it on different instances depending on how the cards are used.

  • Manual Swipe operation, bi-direction
  • Read both normal and high coercivity card (300-4000 Oe)
  • High Performance, High Reliability
  • Single, dual and triple track model
  • Comply with ISO 7812, IBM standards , AAMVA, JIS-2
  • Support multi-country code settings
  • Support programmable MSR setting for the header, tailor, separator, suffix and prefix, track sequence (using Matrix Maker )
  • with metal weigh for balancing during swiping
  • Life of head Approx 500,000 passes under normal ideal laboratory environment
  • Error rate Less than 0 .5% under the normal ideal laboratory environment
  • USB, PS/2 and RS232 are available.
  • USB exists as a HID device, no need to install any driver.
