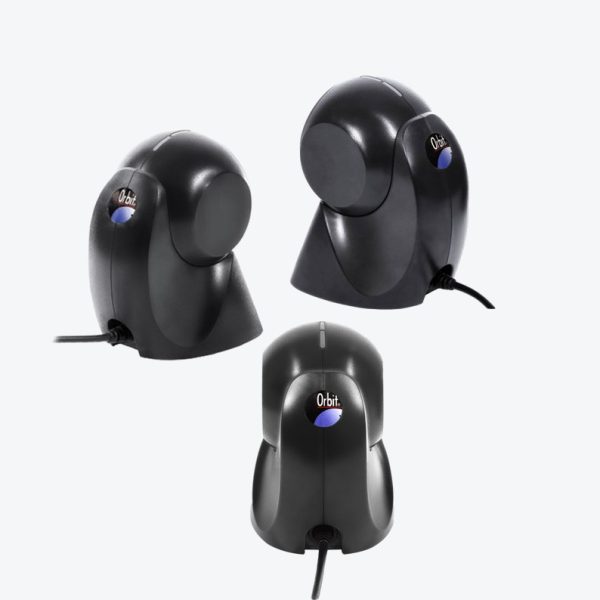

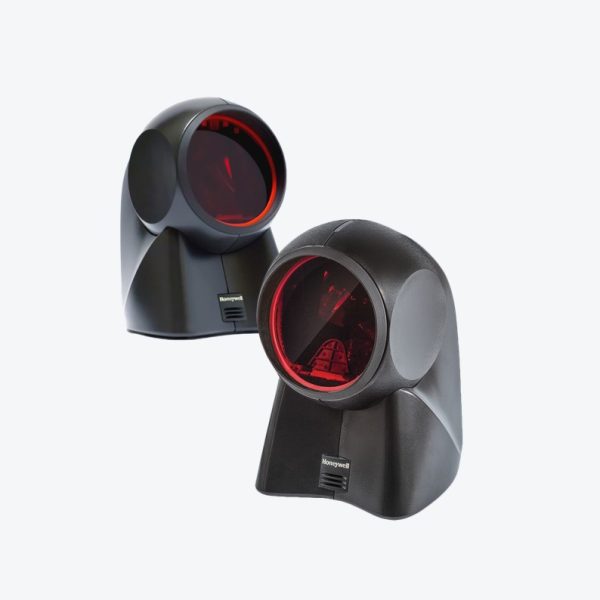

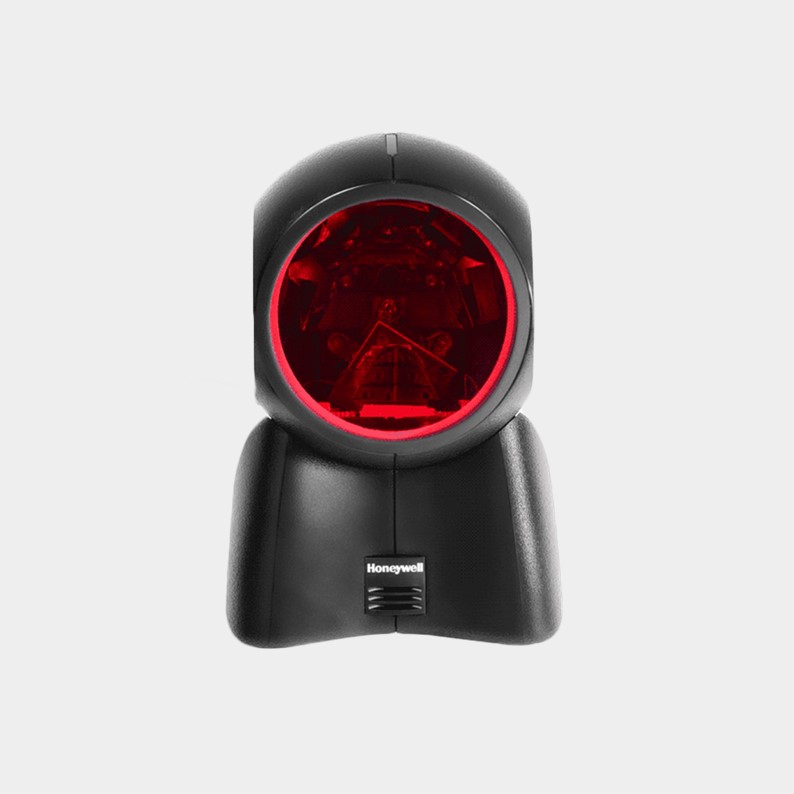

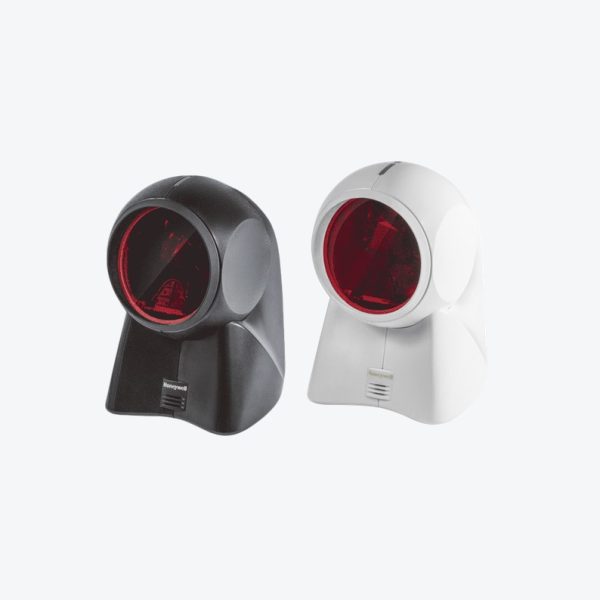

Honeywell Orbit 7190G Hybrid Presentation Scanner

Specification
  • Scan Pattern: Hybrid, Omnidirectional Laser (5 fields of 4 parallel lines) and Area Imager (640 x 480-pixel array)
  • Scan Speed:
    • Omnidirectional:1120 scan lines per second
    • FPS: 30
  • Scan Angle (Imager): Horizontal (40°); Vertical (30.5°)
  • Scanning Range: Presentation (0 ft to 10 ft (0 mm to 255 mm))
  • Laser-Imager Hybrid

The Orbit 7190g scanner is designed for highly efficient retail checkouts with a unique dual-modes design that enables seamless scanning of both merchandise and digital barcodes. It’s incorporated breakthrough hybrid technology that combines omnidirectional laser scanning and integrated area-imaging to provide a barcode reading platform optimized for highly efficient checkouts.

  • Host System Interface: KBW, RS-232, RS485, USB
  • Dimensions (L x W x H): 108 mm x 103 mm x 148 mm (4.3 in x 4.1 in x 5.8 in)
  • Decode Capability:
    • Laser: Reads standard 1D, GS1 DataBar symbologies
    • Imager: Reads standard 1D, PDF and 2D symbologies
  • Print Contrast: 35
  • Symbol Contrast: 35% minimum reflectance difference
